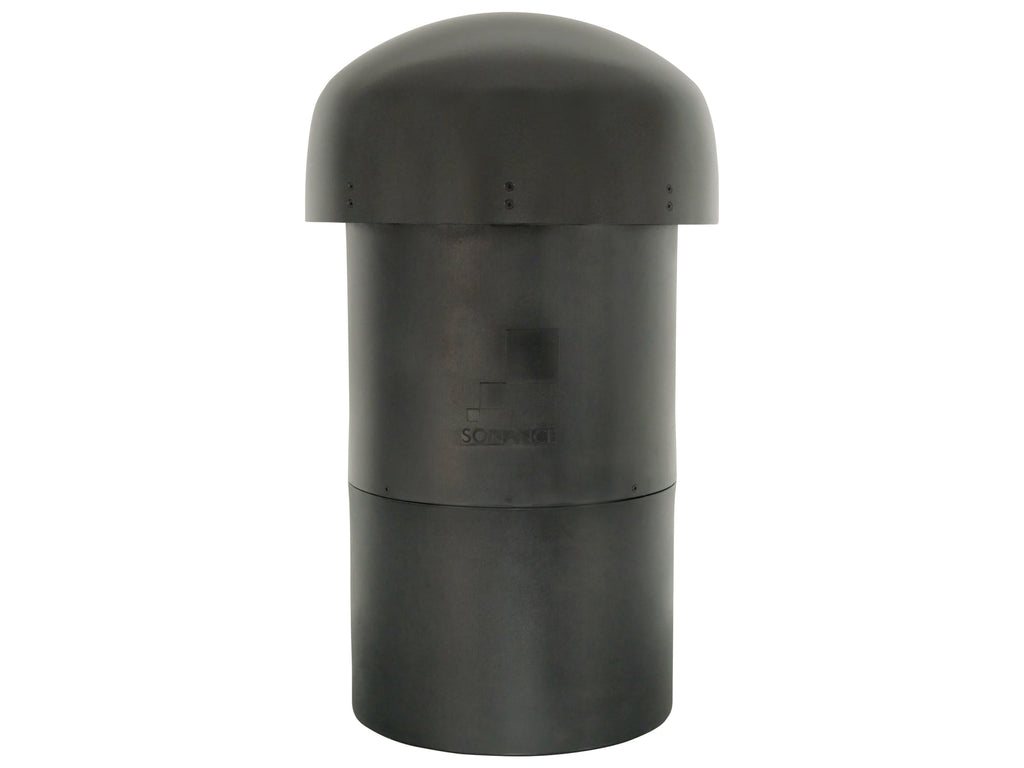

LS12T SUB outdoor subwoofer from the Landscape Series
The LS12T SUB is a Sonance subwoofer belonging to the Landscape Series, intended to reproduce low frequencies in outdoor audio installations with even coverage.
It is built from a composite moulded in colour, chosen so that it lasts over time and blends into the landscape. The subwoofer is designed to be buried upright without difficulty and carries a long-excursion woofer whose cone is polypropylene, paired with an adjustable SLCT transformer.
Key features
- 12" (305 mm) woofer: polypropylene cone and a surround in Santoprene rubber
- Frequency response from 22 Hz to 100 Hz (+/- 3 dB)
- Handles from 50 W to 375 W RMS, with a sensitivity of 91 dB (2.83 V/1 m)
- Subwoofer designed around a Laminar Flow Port
- 300 W SLCT (Sonance Laminated Core Transformer) whose tap can be adjusted
- Resistant to UV rays, IP66 protection rating and MIL STD 810 rating
Technical data
The transformer provides 300 W, 150 W and 75 W taps on 70 V and 100 V lines, plus a 38 W tap on 70 V lines only. The enclosure is low-density polyethylene (LDPE). It measures 431 x 740 x 431 mm (width, height, depth) and weighs 25.38 kg. The finish is brown.
Installation
The LS12T SUB is installed by burying it upright. Its UV resistance and its IP66 and MIL STD 810 ratings show that it is built to keep working even in extreme environmental conditions. The subwoofer is sold as a single unit.
