Stereo integrated valve amplifier with KT150s, single-ended class A.
TRV-A150XR: the design

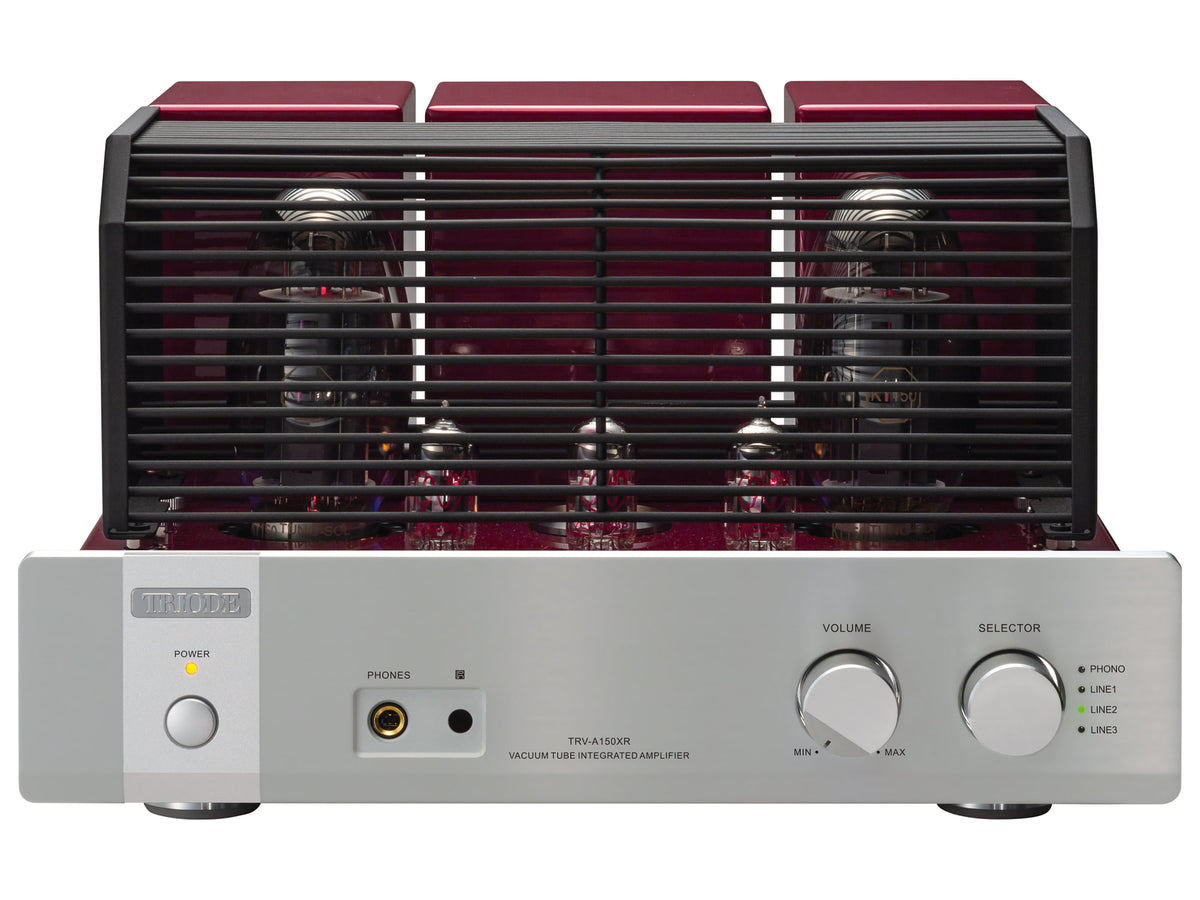

The TRV-A150XR uses one KT150 per channel in single-ended class A: 18 W per channel, enough to drive speakers of different kinds.
Bias is set from the top plate with the meter. The supply has a large toroidal transformer and silicon-carbide Schottky diodes. The aluminium remote, an MM phono input and a headphone output are standard.
Specifications
- Circuit: single-ended class A, fixed bias with meter
- Valves: 2 × KT150, 1 × 12AX7, 2 × 12AU7
- Output power: 18 W + 18 W into 8 ohms
- Frequency response: 16 Hz - 62 kHz (−3 dB)
- Signal-to-noise ratio: 90 dB

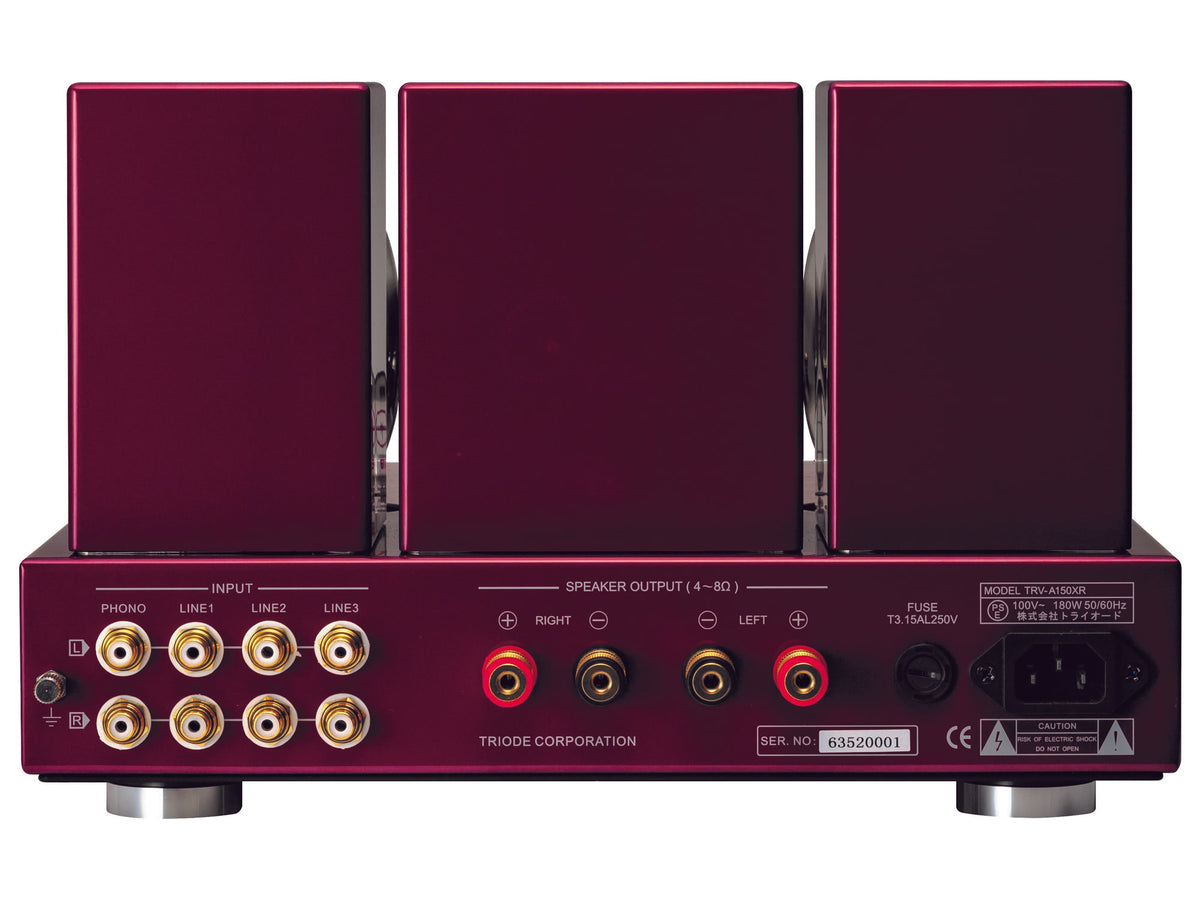

- Inputs: 1 MM phono, 3 line
- Speaker output: 4-8 ohms · Headphone output: 6.3 mm jack
- Remote control: volume, mute, inputs
- Dimensions (W × H × D): 345 × 210 × 320 mm
- Weight: 18 kg
