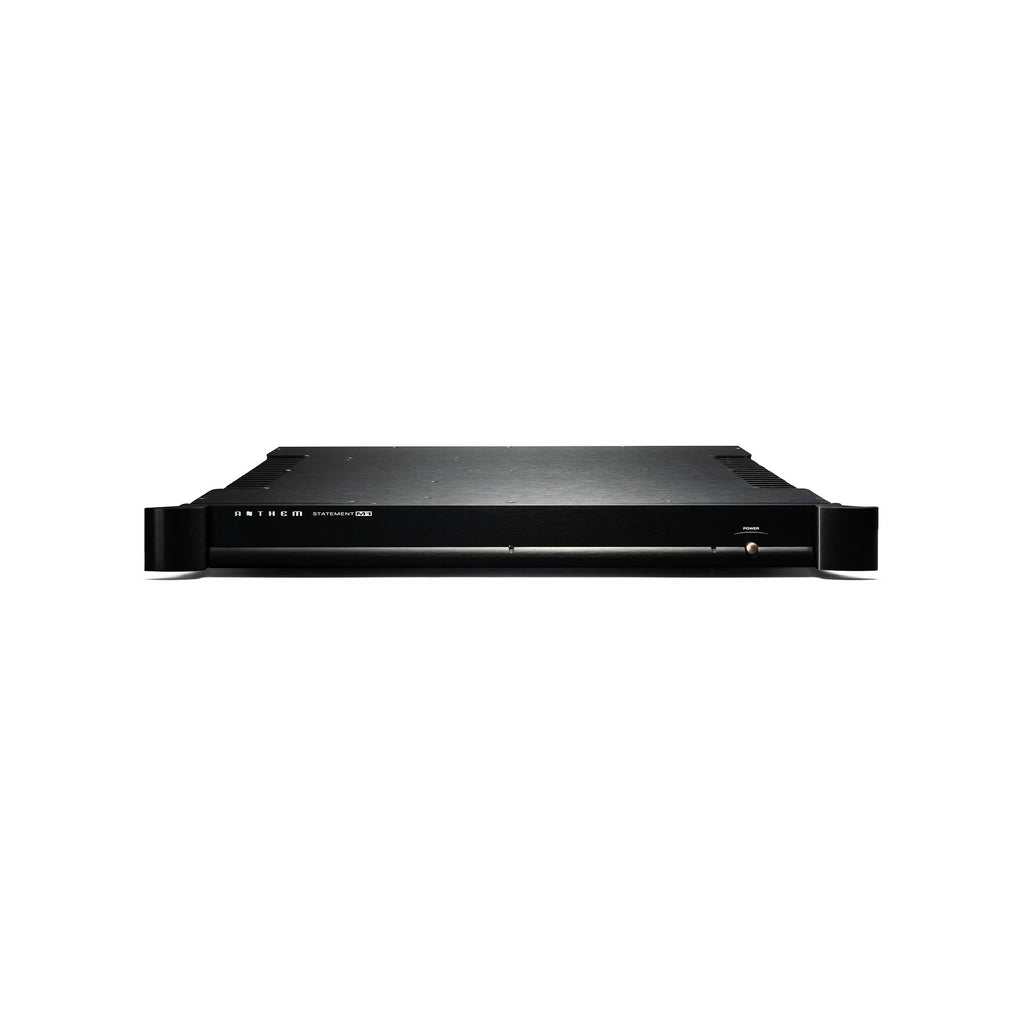

The Statement M1 is a state-of-the-art monaural amplifier delivering 1,000 watts into 8 ohms and 2,000 watts into 4 ohms or less with THD remaining under 0.1%. It was designed and engineered in our advanced research center in Ottawa, Canada and is manufactured in our Toronto, Canada factory.
More than just a slim, technologically advanced monaural design, the M1 demonstrates that Class D architecture isn't fundamentally flawed, it simply hasn't been implemented well in the past, mainly because it required such a heavy commitment to R&D. We're fortunate to have the in-house resources to create such a groundbreaking product and one listen will reveal the truly extraordinary nature of this amplifier.;
continuous power output,
20Hz to 20kHz,
<0.4% THD+N 8 Ù 1000W
4 Ù 2000W
3 Ù 2400W
2 Ù >2000 W depending on line voltage regulation
With 120V AC supply the amplifier's maximum output into impedances 4 Ù and lower, as well as its maximum duration,
vary depending on line voltage regulation. Frequency Response
20Hz to 20kHz Open circuit +/- 0.1dB
8 Ù +/- 0.1 dB
4 Ù +/- 0.1 dB
2 Ù +/- 0.2 dB Power Bandwidth
1000 W at 8 Ù 5 Hz to 45 kHz THD+N at 1 kHz, 8 Ù 1 W 0.01 %
10W 0.01%
100W 1000W IMD 19kHz + 20kHz, CCIF 0.003% S/N Ratio ref. 1000 W, IEC-A 113 dB Voltage Gain 29 dB Input Sensitivity 100 mV for 1 W output, 3.2 V for 1000 W output (8 Ù) Input Impedance 10 kÙ (RCA), 20 kÙ (XLR) Damping Factor 800 to 1400 depending on frequency XLR Configuration Pin 1: Ground, Pin 2: Positive, Pin 3: Negative POWER REQUIREMENTS Consumption in a
typical music/theater installation standby mode, 120V mains standby mode, 240V mains operate mode, idle 33W
typical operation 300 W Where mains voltage is 120V, one dedicated 15A circuit per amplifier is recommended depending on speaker. A 20A circuit is adequate for two amplifiers playing music where speaker impedance is 8 Ù.
This product operates from a single phase AC power source that supplies between 108V and 264V at a frequency of 50 or 60 Hz. DIMENSIONS Height with feet 2 1/4 inches (5.7 cm)
without feet 1 rack unit Width standard handles 19 1/4 inches (49 cm)
rackmount handles 19 inches (48.3 cm) Depth 18 3/4 inches (47.6 cm) Weight (unpacked) 20 lb (9 kg)
